Development

Apr 20, 2010 | Post by: wavescalpel (mr) No Comments

Dinghy design and manufacturing

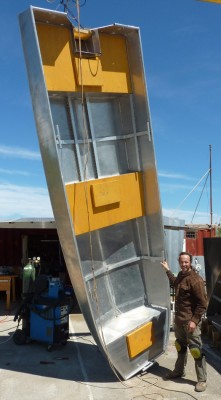

To check the welding quality and the material at very early stages the “dinghy” 5m x 1.76m in 3mm alloy AA5083 has been welded.   The first tests were very successful. Minor reinforcements had to be made. The boat is early planing (even with 4 persons) powered by just 15HP

Read More
Jan 28, 2008 | Post by: wavescalpel (mr) No Comments

Development: WaveScalpel 16m hulls SolidWorks CAD model

Here the hull design and position of the cross sections is settled.

Read More
Oct 30, 2003 | Post by: wavescalpel (mr) No Comments

Development: first SolidWorks CAD model for WaveScalpel

This design was made on my catamaran PASEO, when sailing in Polynesia. The hulls are quite narrow, with little living space. The deck doesn’t provide much sidewalk area.

Read More
Sep 25, 2003 | Post by: wavescalpel (mr) No Comments

Development first sketch

Here is the very first sketch for my new catamaran WaveScalpel. You find already the 1m bridgedeck clearance and full head height on the bridge. It is supposed to be 8m wide and 14m long, but with the years these dimensions were still subject to be changed. The engine position

Read More
